Power surges — from lightning strikes, utility switching and upstream load events — cause costly damage to appliances, electronics and critical systems. The new **POSP 20 Series** plug-on surge protective device offers an easy, reliable way to add whole-house surge protection at the breaker panel. Designed as a compact UL Type 1 SPD with quick plug-on installation, POSP 20 delivers high-energy surge suppression and clear LED status indication for peace of mind.

Why choose a Plug-On SPD for Whole-House Protection?

A plug-on SPD installs directly into the load center and minimizes lead length between the SPD and the service, which significantly improves suppression performance. For homeowners, installers and electrical contractors, plug-on SPDs mean:

• Fast, space-saving installation— fits two adjacent 1-inch poles in standard load centers.
• Superior surge suppression— shorter lead lengths reduce let-through voltage to downstream equipment.
• Clear status monitoring — LED indicates power and protection health for easy maintenance.

Key Features of the POSP 20 Series

UL 1449 5th Edition Type 1 certified — engineered for protection at the service entrance.

Nominal discharge current (In) 20kA (8/20μs) per mode, with 50kA surge capacity for high-energy events.

Full mode protection (L1–N, L2–N, L1–L2)  with Voltage Protection Ratings (VPR) suitable for split-phase systems.

Patented PTMOV (thermally protected MOV) technology for enhanced safety and high SCCR performance.

SCCR up to 10kArms without external fuse or breaker (pending listing).

Easy LED status indicator— green = normal; LED off indicates loss of protection and replacement required.

Technical Specifications (quick reference)

Model:  POSP120SP20.

Power system: 120/240 Vac, split phase 3W (L1, L2, N).

Nominal discharge current (In): 20kA (8/20µs).

-Surge capacity per phase: 50kA (8/20µs).

VPR (L–N / L–L): 600V / 1000V.

MCOV: L–N 150Vac, L–L 300Vac.

Installation width:  two adjacent 1-inch poles; neutral connect to neutral bus.

Operating temperature:  −40°C to +75°C; humidity 5–95% (25°C).

Dimensions: 74 × 50 × 64.5 mm. **Warranty:** 5 years.

Installation & Compliance Notes

POSP 20 is optimized for quick plug-on mounting into standard load centers from common manufacturers — make sure the unit is placed as close as possible to the main breaker or main lug and the neutral bar to maximize performance. Always follow local electrical codes and UL/ANSI guidelines during installation. Do **not** Hi-Pot test the SPD (this will cause premature failure). fileciteturn0file0

Benefits by Use Case

 Residential homeowners: Protect refrigerators, HVAC systems, smart home devices and entertainment systems from damaging transients.

Commercial & light industrial sites: Protect POS systems, servers and control equipment at the service entrance with Type 1 protection.

Renewable energy & EV charging applications: Use at the panel to add a first line of defense against lightning-induced surges and grid switching events.

Call to Action

Protect your home or facility now — contact our sales team for pricing, load center compatibility, and bulk orders. For technical datasheets and installation guidance, download the full POSP 20 datasheet or email our technical support.

Why You Need CAT6 Ethernet Surge Protection
Every Ethernet link—especially those spanning outdoor runs or industrial zones—is vulnerable to transient overvoltages caused by lightning strikes, switching operations, or electrostatic discharge. Unprotected RJ45 ports can translate a single surge event into damaged network switches, routers, VoIP phones, or building automation controllers. An inline RJ45 surge protector diverts surge energy away from sensitive electronics, ensuring network uptime and equipment longevity.

D-05/RJ45B

D-05/RJ45

Key Specifications of Prosurge D-05/RJ45 Series
Prosurge’s D-05/RJ45 SPD meets the rigorous demands of modern Ethernet installations:

• CAT6 Compliance & High Bandwidth
  Supports Class E structured cabling up to 250 MHz, fully capable of Gigabit Ethernetat 1,000 Mbps with minimal insertion loss (≤ 3 dB) and ultrafast response (≤ 1 ns).
• Two-Stage GDT/TVS Technology
  Combines a three-pole gas discharge tube (GDT) with high-speed transient voltage suppressor (TVS) diodes. Handles up to 10 kA (8/20 µs) nominal discharge current and 1 kA (10/350 µs) lightning impulse current, delivering superior TVS diode surge protection.
• Safety & Standards
  UL 497b listed, CE marked, and compliant with IEC/EN 61643-21 (D1, C1–C3) as well as ANSI/IEEE C62.41 Category B/C locations. Ensures peace of mind under standard surge test conditions.
• PoE Ready Variants
  For PoE applications, the D-48/RJ45-POE series protects both data and DC power lines up to 60 V, fully compatible with IEEE 802.3af/at/bt PoE standards. Ideal as a PoE surge suppressor for cameras, access points, and IoT devices.

Advanced TVS Diode Surge Protection
Prosurge SPDs leverage TVS diode surge protection for rapid clamping of voltage spikes, safeguarding against fastrise transients. The first GDT stage absorbs high-energy surges, while the secondary TVS diodes clamp residual overvoltages to safe levels within nanoseconds, critical for sensitive Gigabit PHYs.

Applications & Deployment Scenarios
1. Enterprise LANs & Data Centers
Protect edge switches, core routers, and patch panels. For 19″ rack installations, consider the 24-port D-05/RJ45-24P bay mount SPD for centralized surge defense.

2. Outdoor & Harsh Environments
Use the IP66 rated D-05P/RJ45 protector with waterproof enclosure for rooftop radios, outdoor PoE cameras, and industrial Ethernet links.
3. Security & Surveillance
Ensure continuous operation of IP cameras, NVRs, and networked sensors with dedicated Ethernet surge protector modules at both ends of cable runs.
4. Telecom & ISDN Systems
Ideal for protecting modems, VoIP gateways, and PBX interfaces against indirect lightning strikes and line cross protection.

Installation Best Practices
• Placement: Install surge protectors as close as possible to the protected device’s RJ45 port. For long cable runs, protect both ends to minimize induced surges.
• Grounding: Use a dedicated, low impedance earth connection (≤ 50 cm, ≥ 2.5 mm² conductor) directly to the SPD’s grounding point.
• Separation: Keep surge-protected and unprotected cables in separate ducts or compartments to reduce coupling.
• Regular Inspection: Check SPD status indicators (if available) and earthing integrity during routine maintenance.

Conclusion
Investing in a Prosurge RJ45 surge protector is a proactive step towards uninterrupted, reliable network performance. Whether you need CAT6 Ethernet surge protection for corporate LANs, a high-performance Gigabit Ethernet SPD for data centers, or a robust PoE surge suppressor for IP devices, Prosurge offers a comprehensive portfolio to meet your most demanding requirements.

1. Fundamental Shift: From Testing Methods to Foundational Framework
   • IEC 61643-01:2024:This edition establishes the foundational document for the entire low-voltage SPD standards series. Its expanded scope encompasses all SPD types protecting against direct/indirect lightning effects and transient overvoltages. Beyond defining performance parameters, it systematically outlines safety requirements, test methodologies, and ratings for circuits ≤ 1000V AC (RMS) or 1500V DC.
   • IEC 61643-11:2011:Primarily focused on SPD testing procedures, this version has been replaced by IEC 61643-01:2024 and the forthcoming second edition of IEC 61643-11. The new standard thus serves as the cornerstone framework for all subsequent test standard development.

2. Technical Advancements: Critical Updates & Enhancements

IEC 61643-01:2024 introduces substantial technical refinements that elevate the standard’s rigor and applicability:

• Clarified Test Object Definitions:Explicit requirements now distinguish testing for complete SPD assemblies, specific “protection modes”, or individual “SPD components”, enabling more accurate real-world performance assessments.
• Quantified Protection for Combined Modes:New voltage protection level (Up) measurement requirements for combined protection modes between live conductors and Protective Earth (PE) deliver comprehensive performance data for robust surge protection design.
• Enhanced Follow-Current Interruption Validation:Mandatory follow-current testing with additional load for Type 1 and Type 2 SPDs verifies reliable interruption capability at lower impulse currents, ensuring performance in complex grid conditions.
• Modernized Short-Circuit Testing:Updated short-circuit current requirements better align with contemporary SPD disconnector technology, improving safety in diverse electrical environments.
• Strengthened Dielectric Requirements:

• Elevated dielectric strength tests for main SPD circuits.
• New dielectric testing for electrical isolation circuitssignificantly enhances safety barriers against short circuits and electric shock risks.
  • Expanded Clearance Specifications:Additional electrical clearance requirements for isolation circuits reinforce SPD safety and protection integrity.
  • Comprehensive DC System Guidance:Addressing growing DC applications, the standard provides detailed technical requirements and application guidance for DC SPDs, filling critical implementation gaps.

3. Industry Impact: Driving Safety and Innovation

The release of IEC 61643-01:2024 signifies more than an update—it represents a maturity leap in surge protection technology with profound implications:

• Elevated Technical Benchmark:The standard delivers clearer, stricter guidelines for SPD R&D, design, and deployment.
• Enhanced System Compatibility:Technical refinements enable SPDs to provide more reliable transient overvoltage protection in increasingly complex grid environments.
• Data-Driven Decision Making:Manufacturers, engineers, and end-users gain more rigorous test data and heightened safety criteria for SPD selection, ensuring long-term operational safety and stability.

Conclusion

The fundamental distinction between IEC 61643-01:2024 and IEC 61643-11:2011 lies in their core purpose: the former establishes a comprehensive foundational framework with expanded technical requirements, while the latter focused predominantly on test methods. Through critical upgrades in testing protocols, safety measures (particularly insulation and clearances), and performance validation (e.g., follow-current interruption), the new standard delivers unprecedented precision, adaptability, and safety.

These advancements establish higher industry benchmarks for protection performance. As global electrical safety requirements intensify, IEC 61643-01:2024 emerges as the definitive reference for surge protection, delivering scientifically validated safeguarding for modern power systems.

Overview of Top Surge Protection Device Suppliers

Below is a curated list of the most respected surge protection device manufacturers worldwide. These industry leaders offer a range of AC and DC surge protectors, from Type 1 and Type 2 SPDs for service entrances to compact Type 3 modules for downstream distribution boards.

1. Phoenix Contact

Origin: Germany

Founded: 1923

Headquarters: Blomberg, North Rhine-Westphalia

Specialties: Modular AC/DC surge arresters; industrial connection technology; PLCs and I/O systems; EV-charging protection

Highlights: €3.6 billion turnover; 22,000+ employees; operations in 100+ countries; innovator of the INTERBUS fieldbus and advanced surge modules.

Website: www.phoenixcontact.com

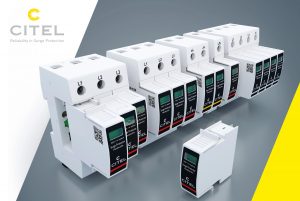

2. Citel

Origin: France

Founded: 1937

Headquarters: Paris

Specialties: Gas discharge tube technology; AC & DC surge protectors; RF and data-line SPDs; PV surge arresters

Highlights: First surge arrester in 1944; major presence in Europe, Asia, and the Americas; product lines for LED lighting systems and coaxial surge protection.

Website: www.citel.fr

3. DEHN

Origin: Germany

Founded: 1910

Headquarters: Neumarkt in der Oberpfalz, Bavaria

Specialties: Type 1, 2, 3 SPDs for industrial, photovoltaic, and telecom applications; lightning rods; earthing systems

Highlights: Over 1,100 surge protection patents; family-owned for four generations; annual revenue approaching €500 million; global distribution network in 70+ countries.

Website: www.dehn-international.com

4. OBO Bettermann

Origin: Germany

Founded: 1911

Headquarters: Menden, Sauerland

Specialties: Complete lightning and surge protection systems; cable management and support solutions

Highlights: Over a century delivering “Think Connected” electrical solutions; serves building, industrial, and energy markets across 60+ countries.

Website: www.obo-bettermann.com and www.obo.global

5. Hakel

Origin: Czech Republic

Founded: 1994

Headquarters: Hradec Králové

Specialties: AC/DC surge arresters; insulation monitoring devices for IT networks; Type 3 terminal protection

Highlights: ISO 9001 certified; strong focus on hospitals, railways, and oil & gas sectors; proprietary HAKELSOFT design and calculation tools.

Website: www.hakel.com

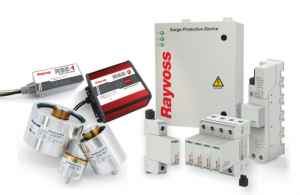

6. Raycap

Origin: Greece & Slovenia

Found: 1987

Headquarters: Athens, Greece & Ljubljana, Slovenia

Specialties: Telecom-grade SPDs; Strikesorb® series; RaycapSTAX™ stackable modules; EV-charging and renewable energy surge protectors

Highlights: Acquisition of Iskra Zaščite in 2015; multiple R&D sites in Europe and the U.S.; focus on fiber-optic, telecom, and critical-infrastructure protection.

Website: www.raycap.com

7. Saltek

Origin : Czech Republic

Founded: 1995

Headquarters: Ústí nad Labem

Specialties: BFG surge protectors; Type 1+2 combination arresters; socket-integrated SPDs; railway-infrastructure voltage limiting devices

Highlights: Over 600 SPD variants; design award winner; strategic partnerships with Schneider Electric and ABB; 6,000 m² modern production facility.

Website: www.saltek.eu

8. ABB

Origin: Switzerland

Founded: 1883 (SPDs since 1990s)

Headquarters: Zurich

Specialties: MOV-based surge arresters; thermal disconnectors; fault indicators; smart-grid compatible modules

Highlights: Pioneer in modular and remotely monitored SPDs; solutions for residential, commercial, PV, and industrial automation.

Website: www.abb.com

9. Prosurge Electronics

Origin: China

Founded: 2006

Headquarters: Mechanicsburg, PA 17055,USA

Specialties: Global patent technology-TPAE; AC/DC surge protection solutions; single-phase and three-phase SPDs; EV-charging station surge protectors; photovoltaic (PV) system over-voltage arresters; VT technology

Highlights:

In-house lab enables us to perform test according to lEC 61643-11&UL 1449 standard.

UL&TUV certified professional SPD manufacturer

Prosurge’s international R&D team is one of the best in industry.

Website: www.prosurge.com

10. Cirprotec (Mersen Group)

Origin: Spain (part of Mersen)

Founded: 1993

Headquarters: Terrassa, Spain

Specialties: Early streamer emission rods; V-CHECK® and Safeground® eco-design SPDs; photovoltaic and e-mobility protection

Highlights: Over 30 years of surge expertise; R&D and manufacturing augmented by Mersen since 2014; presence in 60+ markets.

Website: www.cirprotec.com

11. Schneider Electric

Origin: France

Founded: 1836 (SPD lineup since late 20th century)

Headquarters: Rueil-Malmaison

Specialties: Multistage surge protection; home and building automation surge modules; data-center rack-mounted SPDs

Highlights: Global leader in energy management; integrated EcoStruxure™ architecture; extensive UL and IEC certified product ranges.

Website: www.se.com

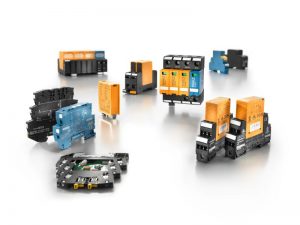

12. Weidmüller

Origin: Germany

Founded: 1850

Headquarters: Detmold, North Rhine-Westphalia

Specialties: DIN-rail SPDs; modular surge protection for control cabinets; signal and data-line arresters

Highlights: Focus on industrial connectivity; plug-and-play surge modules; advanced diagnostic and remote-signaling options.

Website: www.weidmuller.com

A surge protector—also known as a surge protection device (SPD)—is designed to safeguard low-voltage electrical systems against damaging voltage spikes caused by lightning strikes or switching operations. By diverting and absorbing transient overvoltages, SPDs prevent equipment failures, downtime, and safety hazards. Common types include Class I (T1) SPD, Class II (T2) SPD, and combined Class I+II (T1+T2) SPD units.

Prosurge Class I+II (T1+T2) DIN-Rail Surge Protector

Prosurge’s VT series—model numbers BP25VT, BP25V, and BPS12.5V—is an IEC 61643-11 certified, TUV SUD approved DIN-rail mount surge protector, ideal for industrial control panels, building entry points, and high-risk zones (LPZ 0–2).

• VT Technologyfor ultra-low residual voltage
• High energy absorption: up to 25 kA (10/350 µs) per phase, 100 kA in NPE mode
• No leakage currentor follow-on current—extends service life
• Modular design: plug-in replaceable cartridges without shutting down the system
• Thermal disconnect: automatically isolates a damaged MOV module for added safety

BP25VT Series: Premium Class I+II Surge Protector

• Standards & Certifications: IEC 61643-11, TUV SUD (1 P/2 P/3 P/4 P)
• Impulse Current Capability: Iimp = 25 kA (10/350 µs); 100 kA NPE
• Nominal Discharge Current: In = 25 kA (8/20 µs); 50 kA NPE
• Short-Circuit Withstand: 50 kArms
• DIN-Rail Mounting: easy installation, space-saving
• Thermal Fusing: failsafe protection

BP25V Series: Dual-Module Redundancy for Uninterrupted Protection

The BP25V design pairs two MOV modules in parallel within each phase. If one module reaches end-of-life, the second continues to protect your system—no downtime required. Visible fault indicators allow you to replace the spent module without interrupting power.

• Impulse Current: 25 kA (10/350 µs); 100 kA NPE
• Nominal Discharge: 25 kA (8/20 µs); 50 kA NPE
• Short-Circuit Rating: 50 kArms
• Hot-Swap Module: maintain protection while servicing
• Certifications: IEC 61643-11, TUV SUD

BPS12.5V Series: Ultra-Compact 18 mm DIN-Rail SPD

For control panels with limited space, the BPS12.5V delivers full T1+T2 protection in an 18 mm-wide housing. It handles 12.5 kA (10/350 µs) impulse current per phase and 25 kA (8/20 µs) nominal discharge current—perfect for residential, commercial, and renewable energy applications.

• Impulse Current: 12.5 kA (10/350 µs); 50 kA NPE
• Nominal Discharge: 25 kA (8/20 µs)
• Short-Circuit Rating: 50 kArms
• Slimline Design: only 18 mm wide

Why Choose Prosurge T1+T2 SPD?

• All-In-One Protection: Class I+II design guards against direct lightning strikes and induced transients.
• International Compliance: Meets IEC 61643-11 and TUV SUD standards.
• User-Friendly Modular Design: DIN-rail installation, plug-in cartridges, no-shutdown service.
• High-Performance MOV Technology: Reliable operation in harsh environments.
• Versatile Applications: Industrial automation, smart buildings, telecom towers, and photovoltaic inverters.

Contact Us

Build a robust surge protection solution with Prosurge’s Class I+II (T1+T2) DIN-rail SPDs. For detailed datasheets, technical support, or custom system design, reach out to our sales team today.

Understanding IEC/EN 61643: The Benchmark for Low-Voltage Surge Protective Devices

IEC/EN 61643 is a comprehensive series of international standards governing the design, testing, and application of surge protective devices in low-voltage power systems. Incorporating these keywords—“IEC 61643 surge protector”, “low voltage SPD”, and “surge protection standards”—throughout this section will help guide industry professionals seeking best-in-class SPDs.

IEC/EN 61643-11: Defines the requirements and test methods for SPDs connected to low-voltage power systems. Products that meet this standard are rigorously tested for “surge current capacity” and “UL certification”, guaranteeing reliable operation under high-energy surge events.

IEC/EN 61643-12: Outlines selection and application principles, helping engineers choose the right SPD based on system voltage, enclosure type, and installation environment—critical for “industrial surge protection” and “building surge safeguard”.

IEC/EN 61643-31 / 61643-32: Specialized for photovoltaic installations, these parts cover SPDs on both AC and DC sides of solar power systems. With the booming solar market, keywords like “PV surge protector” and “solar SPD” ensure that solar installers find the necessary compliance information

IEC/EN 61643-21 / 61643-22: Address SPDs in telecommunications and signalling networks, a must for those searching “telecom lightning protection” and “network surge arresters” to maintain uninterrupted data and voice services.

TUV certification per IEC 61643

KEMA certification per IEC 61643

Leveraging IEC/EN 62305 for Comprehensive Lightning Protection

While IEC/EN 61643 focuses on SPDs, the IEC/EN 62305 standard suite provides overarching guidelines for lightning protection systems (LPS), ensuring end-to-end defense against lightning-induced surges. Embedding terms like “lightning protection standard”, “LPS design requirements”, and “lightning risk assessment” will attract visitors interested in holistic protection strategies.

IEC/EN 62305-1: Introduces general principles, classifying lightning damage types and potential risks to structures and electronic systems.

IEC/EN 62305-2: Details risk management processes, guiding risk assessments that inform LPS requirements—critical for “building risk assessment” and “lightning risk mitigation”.

IEC/EN 62305-3: Focuses on physical damage prevention, specifying design, installation, and maintenance of external and internal LPS components. Relevant keywords include “external lightning conductor” and “internal lightning protection”.

IEC/EN 62305-4: Covers protection measures for electrical and electronic systems within structures, aligning with “LEMP protection” and “electromagnetic impulse shielding” strategies.

Why ISO-Certified SPDs Matter for Your Project

Prosurge Electronics holds TUV SÜD and DEKRA certifications for our SPDs, reflecting compliance with rigorous EN 61643 testing protocols. When you search for “TUV certified SPD” or “DEKRA surge protector”, you’ll find our SPDs validated for exceptional surge current handling and long-term reliability. Each product’s datasheet clearly specifies parameters such as nominal discharge current (In), maximum discharge current (Imax), and voltage protection level (Up), ensuring engineers can make informed decisions.

Best Practices for Selecting and Installing SPDs

Site Assessment: Conduct a thorough risk analysis in accordance with IEC/EN 62305-2 to determine the necessary level of protection.

Correct SPD Type: Choose between Type 1, Type 2, or Type 3 SPDs based on proximity to the service entry point and system architecture—key terms include “Type 2 surge arrester” and “Type 3 overvoltage protector”.

Proper Coordination: Ensure upstream and downstream SPDs are coordinated to prevent performance degradation. Search phrases like “surge protection coordination” will guide engineers to best practices.

Regular Maintenance: Schedule periodic inspections and testing to verify SPD health, using keywords such as “SPD maintenance checklist” and “surge protector testing”.

By aligning your electrical and solar installations with IEC/EN 61643 and IEC/EN 62305 standards and choosing TUV-certified, high-performance SPDs, you can minimize downtime, protect critical assets, and ensure compliance with global surge protection regulations. For detailed product information, model comparisons, and installation guidelines, explore our full SPD lineup and technical resources on the Prosurge website.

The Core SPD Types: Installation & Protection

1. Type 1 SPDs (Permanently Connected, Hard-Wired):

   • Installation Location: Installed between the service transformer secondary and the line side of the main service disconnect overcurrent device (OCPD), or on the load side of the main service OCPD. Includes watt-hour meter socket SPDs.

   • Key Feature: Must be listed without requiring an external overcurrent protective device. This eliminates the risk of incorrect OCPD matching.

   • Nominal Discharge Current (In): Rated for high exposure, either 10kA or 20kA.

   • Ideal For: Primary service entrance protection, especially for whole house surge protection and critical infrastructure where surges originate externally.

2. Type 2 SPDs (Permanently Connected, Hard-Wired):

   • Installation Location: Installed on the load side of the main service equipment OCPD (e.g., main panel, sub-panels).

   • Key Feature: May or may not require an external OCPD, as specified by their NRTL listing and labeling. The chosen OCPD can impact the SPD’s effective Nominal Discharge Current Rating (e.g., 10kA with a 30A breaker vs. 20kA with a specific OCPD).

   • Nominal Discharge Current (In): Offers more options: 3kA, 5kA, 10kA, or 20kA.

   • Ideal For: Panel mount SPDs providing secondary protection within the building distribution, industrial surge protection, and commercial electrical systems.

3. Type 3 SPDs (Point of Utilization):

   • Installation Location: Installed at a minimum conductor length of 10 meters (30 feet) from the service panel, unless specifically evaluated as Type 2 (with a minimum 3kA In rating). Includes surge protection power strips, plug-in surge protectors, and receptacle-type SPDs.

   • Ideal For: Protecting individual sensitive devices like computers, home entertainment systems, medical equipment, and office equipment directly at the point of use.

Key Differences: Type 1 vs. Type 2 SPDs

• External Overcurrent Protection (OCPD): Type 1 SPDs never require an external OCPD; protection is built-in. Type 2 SPDs may require an external OCPD, specified in their listing.

• Nominal Discharge Current (In) Ratings: Type 1: 10kA or 20kA. Type 2: 3kA, 5kA, 10kA, or 20kA.

• UL 1283 EMI/RFI Filtering: SPDs with integrated EMI/RFI filtering evaluated to UL 1283 are only listed for load-side (Type 2/3) applications. Type 1 SPDs cannot have a complimentary UL 1283 filter listing, though they may use UL 1283 recognized components internally.

• Capacitor Safety Standards: Capacitors in Type 1 SPDs are evaluated to UL 810. Capacitors in Type 2 SPDs are evaluated to UL 1414 and/or UL 1283.

Component Assemblies: Building Blocks for OEMs & Panels

• Type 1, 2, 3 Component Assembly SPDs (Recognized Components): These are SPD sub-assemblies factory-installed into listed electrical distribution equipment (like panels or switchgear) or end-use equipment. They pass the same safety tests as listed SPDs but require installation within a host assembly for user safety (e.g., exposed terminals need enclosing). *Distinct from older Type 4/5 concepts.*

• Type 4 Component Assembly SPD (Recognized Component): Consists of one or more Type 5 components plus an integral/external disconnector or means to pass UL 1449 limited current tests. These are incomplete SPD assemblies requiring further evaluation within a listed end-use product. Cannot be field-installed standalone.

• Type 5 SPD (Recognized Component): The fundamental building blocks – discrete surge protection components like MOVs (Metal Oxide Varistors) or gas discharge tubes. Mounted on PCBs or with leads/enclosures. These are incomplete and require design into a complete SPD assembly (like Type 1, 2, 3, or 4). Cannot be field-installed standalone. Essential for circuit protection design.

Choosing the Right SPD for Optimal Power Quality and Equipment Safety

Selecting the appropriate UL 1449 listed SPD type is paramount for effective transient voltage surge suppression (TVSS):

1. Type 1 SPDs: Essential first line of defense at the service entrance for maximum lightning surge protection and utility surge mitigation.

2. Type 2 SPDs: Crucial for secondary surge protection at distribution panels, protecting downstream circuits in commercial buildings and industrial facilities.

3. Type 3 SPDs: Provide localized point-of-use surge protection for sensitive electronics.

4. Layered Approach (Type 1 + Type 2 + Type 3): Implementing SPDs at multiple levels offers the most comprehensive equipment protection strategy, managing different surge energies effectively.

Ensure Your Surge Protection Meets UL 1449 Standards

Understanding UL 1449 SPD types is fundamental for designing resilient electrical systems, protecting valuable assets, and ensuring power reliability. Whether you need whole building protection, panel level SPDs, or equipment specific surge suppression, selecting the correct SPD type certified to UL 1449 is non-negotiable. Consult with certified professionals to design a surge protection strategy tailored to your specific needs and electrical code requirements. Protect your investment with the right surge defense.

In modern electrical installations, selective coordination between overcurrent protective devices (OCPD) is paramount for both safety and operational continuity. But what exactly is OCPD selectivity? Simply put, it’s the precise coordination of protective devices—such as circuit breakers (MCB, MCCB), fuses, and specialized solutions like Prosurge SCB—ensuring that only the device closest to a fault trips. This isolates the problem while keeping the rest of the electrical distribution system operational, minimizing downtime and enhancing electrical safety.

Why Proper Selectivity Matters:

• Prevents Nuisance Tripping:Avoids unnecessary shutdowns of healthy circuits.
• Improves System Reliability:Maintains power to critical loads during faults.
• Enhances Safety:Reduces arc flash risks by localizing fault clearance.
• Simplifies Troubleshooting:Clearly identifies the fault location.

Methods for Ensuring Selective Coordination:

Achieving reliable OCPD coordination hinges on meticulous comparison of time-current characteristics (TCC curves). Key principles include:

1.Circuit Breaker vs. Circuit Breaker/Fuse Coordination: When coordinating devices (e.g., an upstream MCCB and a downstream fuse, or two thermal-magnetic breakers), their tripping curves must be analyzed.

2.Critical Safety Margin:A sufficient time gap must exist between the curves:

≥ 1 second is generally recommended for thermal-magnetic breakers.≥ 100 milliseconds (ms) is typically required for breakers with electronic trip units.

3.Manufacturer Guidance: Always consult specific OCPD manufacturer documentation for detailed selectivity tables and application notes. Proper electrical protection coordination is complex and device-specific.

Optimizing SPD Protection: The Prosurge SCB Advantage

Surge Protective Devices (SPDs) are vital for safeguarding equipment against transient overvoltages caused by lightning strikes and switching surges. However, SPDs themselves require robust overcurrent protection. Traditional solutions like standard backup fuses or circuit breakers often face a dilemma:

Challenge: Balancing the need to withstand expected surge currents (avoiding nuisance tripping) with the need to react instantly to dangerous short-circuit currents or abnormal leakage current.

Prosurge SCB: Engineered Selectivity for SPDs

The Prosurge SCB (Surge Protective Device Circuit Breaker) is specifically designed as a backup OCPD for SPDs, offering superior performance:

Fully Coordinated Protection: Pre-engineered to match the characteristics of specific SPD models, ensuring reliable selective coordination within the electrical system.

Optimal Balance:

1.High Surge Withstand: Remains closed during normal surge events (Iimp, In).

2.Ultra-Fast Fault Clearing: Reacts sharply to potentially destructive short circuits or leakage currents.

Enhanced System Uptime: Prevents unnecessary tripping of upstream main circuit breakers or distribution boards, maximizing power system reliability.

Datasheet of SCB

Comparison of OCPD: Fuse,MCB,MCCB,SCB

Protective range of CB, fuse and SCB

Conclusion: Selectivity is Non-Negotiable for Safety and Uptime

Achieving optimum selectivity between overcurrent protective devices is fundamental to designing safe, reliable, and efficient electrical power systems. Whether utilizing traditional fuses, MCBs, MCCBs, or advanced, application-specific solutions like the Prosurge SCB for surge protection devices, adherence to coordination principles and recommended safety margins is essential.

Investing in proper OCPD coordination:

• Reduces electrical hazardsand arc flash risk.
• Minimizes costly downtimeand equipment damage.
• Ensures compliance with electrical safety standards(e.g., IEC, NEC).
• Protects critical infrastructure from power quality issuesand transient events.

For detailed technical implementation guidance on protective device coordination, fuse selection, circuit breaker settings, or integrating Prosurge SCB into your SPD protection scheme, always consult the specific OCPD manufacturer’s technical manuals and application guides. Prioritizing selectivity is an investment in the resilience and safety of your electrical installation.

Parallel Connection
In a parallel configuration, multiple SPDs are connected simultaneously to the power lines of the protected equipment. This approach provides:

1.Higher current capacity and lower grounding resistance

2.Better distribution and mitigation of lightning surges

3.Enhanced overall lightning protection for the system

4.Redundancy and failover capability: If one SPD fails, others continue to protect the equipment.

Series Connection
In a series configuration, multiple SPDs are connected sequentially along the power lines. This method offers:

1.Higher voltage withstand capability for high-voltage scenarios

2.Cascaded protection, where each SPD handles a portion of the surge energy

Factors to Consider When Choosing Between Parallel and Series Connections

Applications for Parallel Connections

1.Low-voltage power systems
Parallel-connected SPDs are commonly used in low-voltage systems to share surge energy and protect equipment from lightning damage.

2.Communication systems
Multiple SPDs are often installed on telephone or network lines to shield communication devices.

3.Voltage-sensitive electronics
Parallel configurations protect sensitive equipment like computers and servers by optimizing surge energy distribution.

Applications for Series Connections

1.High-voltage transmission lines
Series connections are preferred for high-voltage lines to ensure voltage withstand capability against intense lightning strikes.

2.High-voltage equipment protection
Critical equipment like transformers and generators may require series-connected SPDs for enhanced voltage tolerance.

3.Specialized scenarios
Systems requiring cascaded protection or extreme voltage resistance may adopt series configurations.

Conclusion
Parallel connections generally suit most standard lightning protection needs, offering robust overall protection. Series configurations are reserved for specialized applications requiring high voltage tolerance or cascaded protection. The optimal choice depends on specific scenarios, equipment specifications, and system design requirements. When deciding between parallel and series SPD connections, consulting professional electrical engineers or lightning protection experts is strongly recommended to ensure system reliability and safety.

Open-Circuit Failure in SPDs

Open-circuit failure is a common mode of failure in SPDs, particularly those with varistors. This type of failure typically occurs due to the natural ageing process or thermal protection mechanisms. When an SPD reaches the end of its life, an internal disconnector is activated, rendering the SPD inoperative. This disconnector is designed to disable the SPD to prevent further damage.

In SPDs with gas discharge tubes, internal disconnectors (thermal protection) may also be used to protect against abnormal overheating caused by unexpected follow currents or surge currents. It’s important to note that thermal runaway, a common cause of failure in varistor-based SPDs, does not apply to SPDs with gas discharge tubes or encapsulated spark gaps.

A spark gap, another type of SPD, may fail in an open-circuit mode when it can no longer ignite an arc due to electrode wear or a faded electronic ignition circuit. In this state, the SPD becomes permanently open, leaving the system unprotected.

Why Open-Circuit Failure is Hard to Detect

One of the challenges with open-circuit failure is that it often goes unnoticed. Since the SPD is no longer operational, the system remains unprotected, but there are no immediate signs of failure. To address this, SPDs with failure indication functions are recommended. These indicators alert users when an SPD has failed, ensuring timely replacement before the next surge event.

Short-Circuit Failure in SPDs

Short-circuit failure is another critical failure mode that can have severe consequences. This type of failure can be caused by sustained abnormal over-voltage (TOV) or faults in the distribution system, such as neutral/phase switchover or neutral disconnection. Additionally, surges with unexpected energy levels can also lead to short-circuit failures.

When an SPD fails in short-circuit mode, the system is significantly impacted. The short-circuit current flows through the failed SPD, potentially causing excessive energy dissipation and fire hazards. To mitigate this risk, SPDs must undergo short-circuit withstand capability tests as outlined in the IEC 61643-11 standard.

The Role of Overcurrent Protective Devices

To further protect against short-circuit failures, external overcurrent protective devices, such as fuses, circuit-breakers, or RCDs, are often used in conjunction with SPDs. These devices act as backup protection, interrupting the short-circuit current and preventing potential fire hazards.

Compliance with IEC 61643-11 Standards

The IEC 61643-11 standard provides comprehensive guidelines for testing and verifying the failure modes of SPDs. It mandates that SPDs must have disconnectors (internal, external, or both) to ensure safe operation. Additionally, the standard requires that the operation of these disconnectors be indicated by a corresponding status indicator.

Thermal Protection and Arc Extinguishing Devices

Thermal protection is a critical feature in SPDs, designed to prevent overheating due to degradation or overstress. However, this test is not performed on SPDs containing only voltage switching components and/or ABD devices.

For enhanced safety, some SPDs are equipped with arc extinguishing devices. Porsurge patented to permanently and securely disconnected from the power system, cutoff  AC arc /short circuit to prevent fire hazard

Conclusion

Understanding the failure modes of SPDs—open-circuit and short-circuit—is crucial for maintaining system protection and preventing potential hazards. By adhering to IEC 61643-11 standards and incorporating features like thermal protection and arc extinguishing devices, SPDs can provide reliable and long-lasting protection against surges and voltage spikes.

For more information on our surge protection devices and how they comply with industry standards, visit our  www.prosurge.com
