In today’s hyper-connected world, safeguarding your data infrastructure is non-negotiable. An RJ45 surge protector is the first line of defense against harmful voltage spikes on Ethernet lines. Whether you’re managing a campus CAT6 Ethernet deployment, running a gigabit backbone, or powering IP cameras with Power over Ethernet (PoE), installing the right Gigabit Ethernet SPD (Surge Protective Device) can save equipment, prevent downtime, and reduce maintenance costs.

Why You Need CAT6 Ethernet Surge Protection
Every Ethernet link—especially those spanning outdoor runs or industrial zones—is vulnerable to transient overvoltages caused by lightning strikes, switching operations, or electrostatic discharge. Unprotected RJ45 ports can translate a single surge event into damaged network switches, routers, VoIP phones, or building automation controllers. An inline RJ45 surge protector diverts surge energy away from sensitive electronics, ensuring network uptime and equipment longevity.

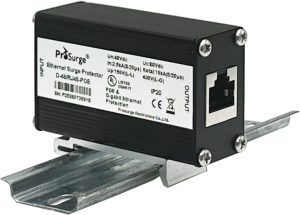

D-05/RJ45B

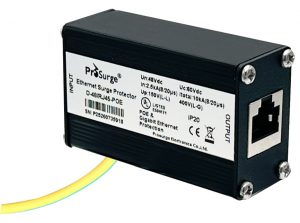

D-05/RJ45



Key Specifications of Prosurge D-05/RJ45 Series
Prosurge’s D-05/RJ45 SPD meets the rigorous demands of modern Ethernet installations:

  • CAT6 Compliance & High Bandwidth
    Supports Class E structured cabling up to 250 MHz, fully capable of Gigabit Ethernetat 1,000 Mbps with minimal insertion loss (≤ 3 dB) and ultrafast response (≤ 1 ns).
  • Two-Stage GDT/TVS Technology
    Combines a three-pole gas discharge tube (GDT) with high-speed transient voltage suppressor (TVS) diodes. Handles up to 10 kA (8/20 µs) nominal discharge current and 1 kA (10/350 µs) lightning impulse current, delivering superior TVS diode surge protection.
  • Safety & Standards
    UL 497b listed, CE marked, and compliant with IEC/EN 61643-21 (D1, C1–C3) as well as ANSI/IEEE C62.41 Category B/C locations. Ensures peace of mind under standard surge test conditions.
  • PoE Ready Variants
    For PoE applications, the D-48/RJ45-POE series protects both data and DC power lines up to 60 V, fully compatible with IEEE 802.3af/at/bt PoE standards. Ideal as a PoE surge suppressor for cameras, access points, and IoT devices.

Advanced TVS Diode Surge Protection
Prosurge SPDs leverage TVS diode surge protection for rapid clamping of voltage spikes, safeguarding against fastrise transients. The first GDT stage absorbs high-energy surges, while the secondary TVS diodes clamp residual overvoltages to safe levels within nanoseconds, critical for sensitive Gigabit PHYs.

Applications & Deployment Scenarios
1. Enterprise LANs & Data Centers
Protect edge switches, core routers, and patch panels. For 19″ rack installations, consider the 24-port D-05/RJ45-24P bay mount SPD for centralized surge defense.


2. Outdoor & Harsh Environments

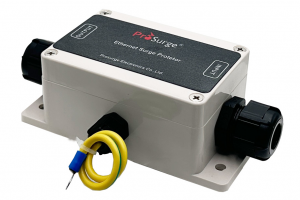

Use the IP66 rated D-05P/RJ45 protector with waterproof enclosure for rooftop radios, outdoor PoE cameras, and industrial Ethernet links.
3. Security & Surveillance
Ensure continuous operation of IP cameras, NVRs, and networked sensors with dedicated Ethernet surge protector modules at both ends of cable runs.
4. Telecom & ISDN Systems
Ideal for protecting modems, VoIP gateways, and PBX interfaces against indirect lightning strikes and line cross protection.

Installation Best Practices
• Placement: Install surge protectors as close as possible to the protected device’s RJ45 port. For long cable runs, protect both ends to minimize induced surges.
• Grounding: Use a dedicated, low impedance earth connection (≤ 50 cm, ≥ 2.5 mm² conductor) directly to the SPD’s grounding point.
• Separation: Keep surge-protected and unprotected cables in separate ducts or compartments to reduce coupling.
• Regular Inspection: Check SPD status indicators (if available) and earthing integrity during routine maintenance.

Conclusion
Investing in a Prosurge RJ45 surge protector is a proactive step towards uninterrupted, reliable network performance. Whether you need CAT6 Ethernet surge protection for corporate LANs, a high-performance Gigabit Ethernet SPD for data centers, or a robust PoE surge suppressor for IP devices, Prosurge offers a comprehensive portfolio to meet your most demanding requirements.
