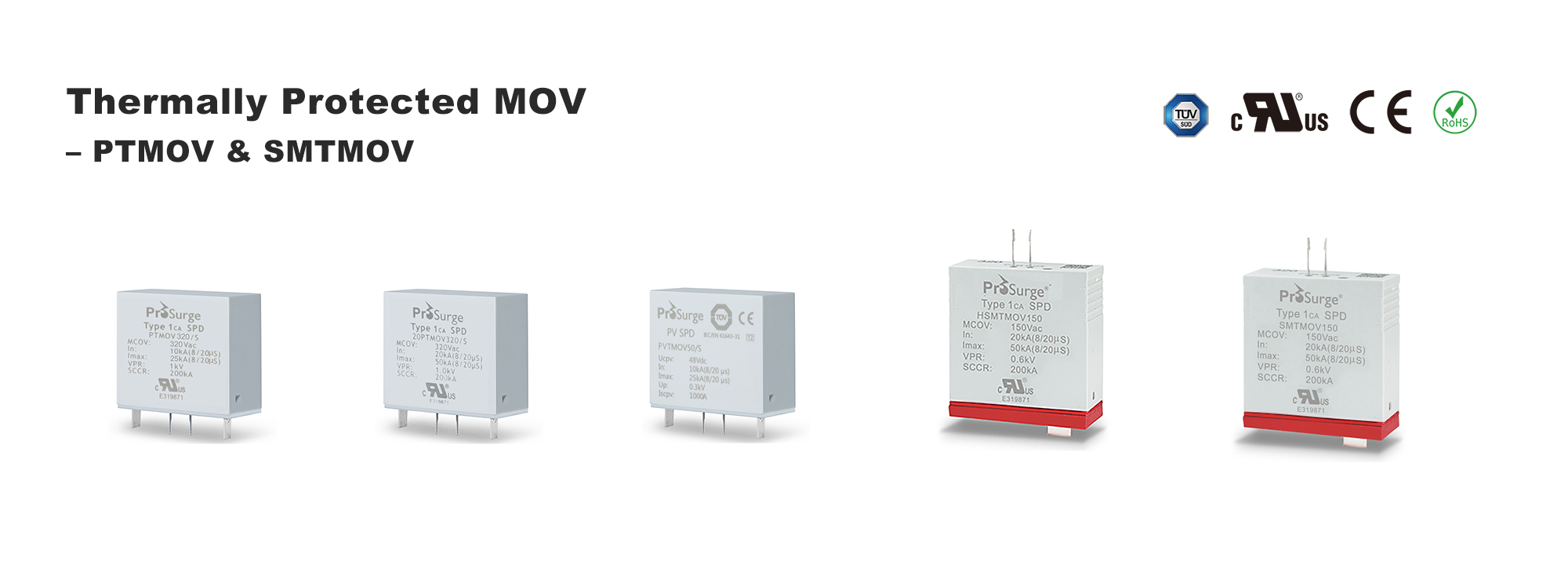

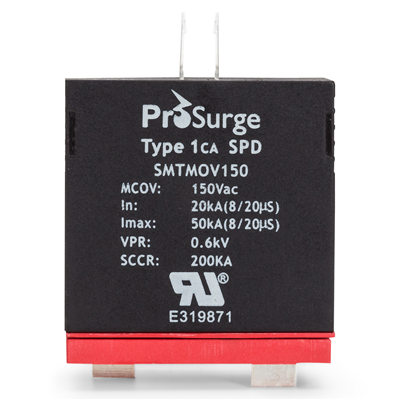

Prosurge’s 2 Size TPMOV (Thermally Protected MOV) – PTMOV & SMTMOV
PTMOV & SMTMOV are Prosurge’s core products and fully reflect our expertise and ingenuity in SPD. They have a significant advantage in abnormal over-voltage & high fault current safety to ensure industry’s highest level of safety and performance. They are extensively adopted by global customers as the most crucial components for various SPD, especially type 1 and type 2 surge panels.
TPMOV Features
- UL recognized Type 1CA (Component Assembly) SPD (ANSI/UL 1449 4th), Type 2 CA SPD (CSA-C22.2)
- Global patented thermal disconnector design with arc extinguishing device, fail-safe & self-protected, quick thermal response and perfect circuit cutoff function
- Visual fault indication and optional remote signal contact (50mA, 12Vdc)
- Wide operating temperature: -40℃~85℃
- Type 1CA design & compact size, can be used individually or in combination for OEM customer
- Meet both standards for ANSI/UL 1449 4th and IEC 61643-11: 2011
TPMOV Applications
- Built-in surge protection of electronic equipment
- Surge protection devices
- AC/DC distribution
- Computer and data technology
- Power supply
- Telecommunication
- Measurement and control system
TPMOV General Datasheet (Shift to landscape mode for smartphone users)
| Part No. | PTMOV | 20PTMOV | SMTMOV | HSMTMOV |
| In accordance with | ANSI/UL1449-4th; IEC61643-11:2011 | |||
| Category UL | Type 1CA | |||
| Max Continuous Operating Voltage (MCOV) | 150~690Vac | |||
| Nominal Discharge Current(8/20μs) In x 15 times | 10kA | 20kA | 20kA | 20kA |
| Max. Discharge Current(8/20μs) Imax x 1 time | 25kA | 25kA (50kA available at 150Vac~320Vac) | 50kA | 75kA |
| SCCR Rating | 200kA | |||
| Response Time | ≤25 ns | |||
| Operating Temperature Range | – 40ºC ~ + 80ºC | – 40ºC ~ + 85ºC | ||
| Enclosure Material | thermoplastic; extinguishing degree UL94 V-0 | |||
| Insulation Resistance | ≥10 MOhm | |||
| Electric Strength | ≥2500V (ac) | |||
| Disconnector Instructions | none | viewed through top hole of plastic housing | ||
| Remote Alarm Contact | switching isolation | |||
Full Datasheet Download of TPMOV

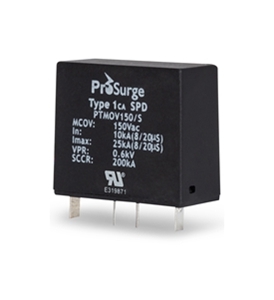

PTMOV (25kA Thermally Protected MOV)
20PTMOV (25kA Thermally Protected MOV)

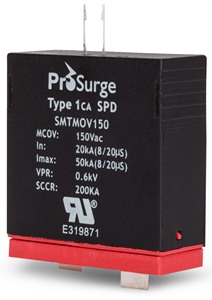

SMTMOV (50kA Thermally Protected MOV)
HSMTMOV (75kA Thermally Protected MOV)
Brief Datasheet for PTMOV (Shift to landscape mode for smartphone users)
| Part No. | MCOV | Surge Current | VPR | ||
| Vac (V) | Vdc (V) | Imax
(x 1 time @8/20μs) |
In (x15 times @8/20μs) |
||
| PTMOV150/S | 150 | 200 | 25kA | 10kA | 600V |
| PTMOV180/S | 180 | 230 | 25kA | 10kA | 800V |
| PTMOV320/S | 320 | 410 | 25kA | 10kA | 1000V |
| PTMOV420/S | 420 | 560 | 25kA | 10kA | 1200V |
| PTMOV550/S | 550 | 745 | 22kA | 10kA | 1800V |
| PTMOV690/S | 690 | 910 | 22kA | 10kA | 2000V |
| 20PTMOV150/S | 150 | 200 | 25kA~50kA | 20kA | 600V |
| 20PTMOV180/S | 180 | 230 | 25kA~50kA | 20kA | 800V |
| 20PTMOV320/S | 320 | 410 | 25kA~50kA | 20kA | 1000V |
Brief Datasheet for SMTMOV (Shift to landscape mode for smartphone users)
| Part No. | MCOV | Surge Current | VPR | ||
| Vac (V) | Vdc (V) | Imax (x 1 time @8/20μs) | In (x15 times @8/20μs) | ||
| SMTMOV150 | 150 | 200 | 50kA | 20kA | 600V |
| SMTMOV180 | 180 | 230 | 50kA | 20kA | 600V |
| SMTMOV275A | 275 | 350 | 50kA | 20kA | 800V |
| SMTMOV320 | 320 | 410 | 50kA | 20kA | 1000V |
| SMTMOV420 | 420 | 560 | 50kA | 20kA | 1500V |
| SMTMOV550 | 550 | 745 | 50kA | 20kA | 1500V |
| SMTMOV690 | 690 | 910 | 40kA | 20kA | 2000V |
| HSMTMOV150 | 150 | 200 | 75kA | 20kA | 600V |
| HSMTMOV275A | 275 | 350 | 75kA | 20kA | 800V |
| HSMTMOV320 | 320 | 410 | 75kA | 20kA | 1000V |
See How Prosurge’s TPMOV Outperforms Our Competitor’s in Comparison Test
At 415Vac temporary overvoltage, our SMTMOV with TAPE technology cuts itself off this abnormal condition and stays safe
From TPMOV to Enclosure-less Panel SPD – Great Option for SPD Manufacturer
Besides offering TPMOV as a component to manufacturers, Prosurge launched a semi-completed surge protection device called Enclosure-less SPD. We have completed the circuit design and assembly of the electronic components of a panel type SPD and have this assembly UL listed. In this case, we handle the complicated and time-consuming jobs in manufacturing a panel type surge protection device so that customers can maufactuer their UL listed panel type SPD at mimum cost and time.
