Enclosure-less Surge Protection Deivce

Enclosure-less Panel Surge Protection Device – for Local Made / SKD

Prosurge’s PCB Assembly (PCBA) series are one-stop high performance surge protection solution for worldwide OEM customers. They are fully functional and flexible surge protection PCB assembly and thus will significantly reduce customer’s investment in designing, certifying and manufacturing and thus ensure an efficient local-make product at minimum cost.

PCBA series fully meet the demanding protection requirements of equipment operation in high-risk or critical commercial and industrial environments. By employing Prosurge’s patented technology, a thermally protected and arc extinguishing MOV technology (PTMOV/20PTMOV/SMTMOV/HSMTMOV), PCBA series have a significant advantage in abnormal over-voltage & high fault current safety to deliver industry’s highest level of safety and performance. The parallel redundancy modules design makes the PCBA more robust and reliable and ensures that they can handle great impulse current up to 900kA and multiple impulse current at its highest rated level.

Combination

Prosurge will handle the complicated and time-consuming jobs in manufacturing a panel type surge protection device so that customers can maufactuer their UL listed panel type SPD at mimum cost and time.

prosurge-surge-panel-to-pcb-assembly-1240

Thermally Protected MOV

(PTMOV/20PTMOV/SMTMOV/HSMTMOV)

Key ComponentThermally Protected MOV

Prosurge-TPMOV-PTMOV-400

25kA TPMOV

PTMOV: In 10kA, Imax 25kA

20PTMOV: In 20kA, Imax 25kA

50kA & 75kA TPMOV

SMTMOV: In 20kA, Imax 50kA

HSMTMOV: In 20kA, Imax 75kA

Features

  • UL 1449 4th Type 1CA recognized SPD with SCCR up to 200kArms without external fuse or CB
  • UL1449 4th Type 2CA SPD with sine wave tracking, SCCR up to 200kArms without external fuse or CB
  • Patented PTMOV/20PTMOV (PSP PCBA), SMTMOV/HSMTMOV (PS PCBA) as key component
  • Full modes protection
  • Large surge energy capability up to 900kA (8/20μs) with compact size
  • Low voltage protection level
  • Degradation failure indication
  • Surge event counter optional
  • Failure pre-test
  • Remote alarm

Applications

  • ANSI/UL 1449 type 1/type 2 location surge protective device OEM building
  • ANSI/IEEE C62.41 Category B, C, D, E surge protection device OEM building
  • IEC 61643-1/11 Class I/II surge protection device OEM building
culus certificate

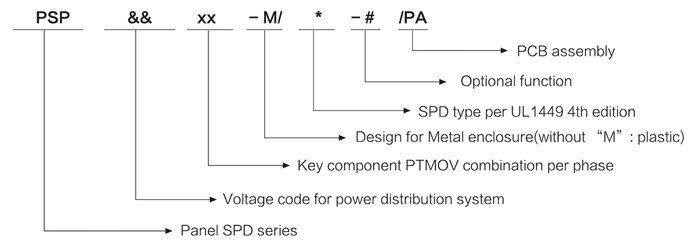

Technical Specifications

PSP PCBA Type PSP B PSP C1 PSP C2 PS D
Certifications ANSI/UL 1449 & CSA C22.2 Type 1/2CA
Connection Type Parallel Connected
Enclosure Recommend
& Dimensions, W x D x H
Plastic enclosure
130 mm x 80 mm x 70mm (min.)
Plastic enclosure
200 x 150 x 100 mm (min.)
Metal enclosure
260 x 190 x 109 mm (min.)
Metal enclosure
350 x 340 x 225 mm (min.)
Surge Capacity Imax: 50kA/phase Imax: 100-300kA/phase Imax: 150~900kA/phase
SCCR Rating 200kArms
Sine Wave Tracking Optional for UL Type 2 certification
Lightning Counter No ≥ 200A (with Reset button)
Failure Pre-test No Press 2S (test button)
Power Status Indication Normal = Power LED ON Normal=Blue LED ON
Working Status Indication Fail=Surge protection LED ON Normal= Blue LED ON; Fail= Blue LED turn to Red AFM (three-stage indication)
Power Connecting 12AWG 10AWG 8AWG
Signal Cable 16AWG (C=Red; NC=Blue; NO=Brown)
Working Environments Temperature -40ºC~+75ºC, Temperature -40ºC~+80ºC,
Humidity relative 5~95% (25ºC), Altitude≤2km
PCBA Dimensions 110 x70 x 57mm 173 x 122 x 85 mm 189 x 122 x 85 mm 284 x 254 x 155 mm
Mounting Hole Two holes, and distance: 110mm Three holes: 70×155 mm Three holes: 105.7×178 mm Four holes: 140×112 mm
Net Weight (typical value) 0.23 kg 1.0 kg 1.0 kg 6.5 kg
