SPD for Ethernet
Prosurge D-05/RJ45-CAT6/H SPD is designed for Gigabit Ethernet terminals against surges. It is suitable for use in category location B, C (ANSI/IEEE C62.41) or directly at the upstream near the protected devices.
Features
- Data network SPD in according with UL 497B, IEEE 802.3 at/af, IEC 61643-21: 2012, EN 50173 Category 6
- Ethernet CAT6 & CAT5 system protection
- Applied in offices and industries like Gigabit Ethernet, ATM or ISDN system, and VoIP system
- High discharge capacity, total nominal discharge current up to 10kA 8/20 and lightning current up to 1kA 10/350
- RJ45 connector for CAT6 & CAT5 network technology, 100BaseT, 8 wires protection
- DIN-rail mounting available
- PoE version available
Surge Protection Device for Ethernet – Non-PoE model
Technical Data for single port model
(Note: For smartphone users, please change to landscape mode)
| Part No. | D-05/RJ45-CAT6/H |
|
| Nominal voltage (Vdc) |
Un |
5V |
| Max. continuous operating voltage (Vdc/ac) |
Uc |
6V |
| C2 Nominal discharge current (8/20μs) |
In |
2.5kA |
| C2 Total nominal Discharge Current (8/20μs ) |
In |
10kA |
| Voltage protection level (V) |
[email protected] (8/20 μs) Up |
≤55V |
|
[email protected] (1KV/μs)Up |
≤25V |
|
| Lightning impulse current(10/350) |
Iimp |
1.0kA |
| Nominal Current IL (A) |
200mA |
|
| Transmission Speed (bps) |
1000Mbps |
|
| Insertion loss at 250MHz (dB) |
≤3.0 |
|
| Transmission standards |
100BaseT/1000BaseT/ 1000BaseTX(CAT6) |
|

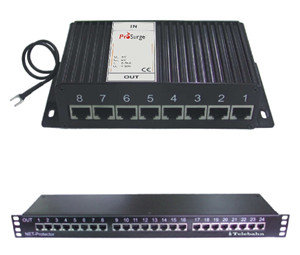

Technical Data for multi port model
(Note: For smartphone users, please change to landscape mode)
| Part No. | DSB05/RJ45-1000M-24P | |
| Number of Connection Ports | 24 | |
| Nominal Voltage (Vdc) | Un | 5V |
| Max. Continuous Operating Voltage (Vdc) | Uc | 6V |
| C2 Nominal Discharge Current (8/20μs) | In | 2.5kA |
| C2 Total nominal Discharge Current (8/20μs) | 10kA | |
| Voltage Protection Level | @C2 (8/20μs) Up | ≤30V (L-L); ≤500V (L-G) |
| @C3 (1KV/μs) Up | ≤24V (L-L); ≤600V (L-G) | |
| Lightning Impulse Current (10/350μs) | Iimp | 1kA |
| Nominal Current | IL | 150mA |
| Insertion Loss | ≤0.1dB | |
| Transmission Speed | 1000Mbps | |
| Technology | Two-stage protection circuit, GDT/SAD technology | |
| Transmission Standards | 1000BaseT/Tx |
Surge Protection Device for Ethernet – PoE (power-over-Ethernet) model
Technical Data for single port model
(Note: For smartphone users, please change to landscape mode)
| Part No. | D-48/RJ45-CAT6/H(POE)-B | |
| Nominal voltage (Vdc) | Un | 48V |
| Max. continuous operating voltage (Vdc/ac) | Uc | 68V |
| C2 Nominal discharge current (8/20μs) | In | 2.5kA |
| C2 Total nominal Discharge Current (8/20μs ) | In | 10 kA |
| Voltage protection level (V) | @C2 (8/20 μs) Up | ≤190V(L-L); ≤500V(L-G) |
| @C3 (1KV/μs)Up | ≤145V(L-L); ≤600V(L-G) | |
| Lightning impulse current(10/350) | Iimp | 1kA |
| Nominal Current | IL (A) | 800mA |
| Insertion loss (dB) | 0.1dB | |
| Transmission Speed | 1000Mbps | |
| Technology | Two-stage protection circuit, GDT/SAD tech | |
| Transmission standards 10BaseT/ | 100BaseT/1000BaseT /1000BaseTX(CAT6)/PoE | |
| Pinning | 1/2, 3/6, 4/5, 7/8 for data; 1&2/ 3&6,4&5/ 7&8 for PoE | |
Technical Data for multi port model
(Note: For smartphone users, please change to landscape mode)
| Part No. | DSB48/RJ45-1000M-24P | |
| Number of Connection Ports | 24 | |
| Nominal Voltage (Vdc) | Un | 48V |
| Max. Continuous Operating Voltage (Vdc) | Uc | 60V |
| C2 Nominal Discharge Current (8/20μs) | In | 2.5kA |
| C2 Total nominal Discharge Current (8/20μs) | 10kA | |
| Voltage Protection Level | @C2 (8/20μs) Up | ≤190V(L-L); ≤500V(L-G) |
| @C3 (1KV/μs) Up | ≤145V(L-L); ≤600V(L-G) | |
| Lightning Impulse Current (10/350μs) | Iimp | 1kA |
| Nominal Current | IL | 750mA |
| Series Impedance per Line | R | 0.5 Ω (PTC) |
| Insertion Loss | ≤0.1dB | |
| Transmission Speed | 1000Mbps |
