UL 1449 5th Ed Type 1ca DIN-rail SPD for AC Power Supply – SP Series

Prosurge SP series DIN-rail SPD (DIN-rail Surge Protection Device) is Type 1ca SPD according to UL 1449 5th edition and is designed for low-voltage power supply system surge protection, especially for point of entry (Category C, D, ANSI/IEEE C62.41) and sub-circuit (Category B, ANSI/IEEE C62.41) protection.

SP series surge protection device features Prosurge’s global patented fail-safe and self-protected technology, offering quick thermal response and perfect cut-off function and providing fast and reliable protection for various power supply systems.

Built with window fault indication and optional remote alarm contact, it can monitor the operating status of the SPD itself.

• Rating:
  • Max. continuous operating voltage MCOV: 150Vac ~ 690Vac
  • Nominal discharge current(8/20 us): 20kA
  • Surge capacity (8/20 μs)：50kA
  • Surge capacity (8/20 μs)：75kA (available for 150Vac~320Vac range)
  • SCCR：200kA – tested without external CB or fuse

• UL recognized Type 1ca SPD (ANSI/UL1449 5th), Type 2ca SPD (CSA-C22.2 ); (UL File No. E319871).
• Pluggable design with window fault indication
• Remote alarm signal optional
• Meet worldwide standards: UL 1449 5th, IEC 61643-11
• Global patented thermal disconnector design with arc extinguishing device, fail-safe & self-protected, quick thermal response and perfect circuit cut-off function.

UL 1449 5th DIN-rail Type 1ca SPD for DC Power / Photovoltaic System

Prosurge SPV series is a Type 1ca SPD (Surge Protective Device) according to UL 1449 5th Ed., designed for photovoltaic system DC side protection against the damage from surges caused by lightning and other electrical sources.

• Rating:
  • Max. Permitted DC Voltage (Vpvdc): 85-1500Vdc
  • Surge capacity (8/20 μs)：50kA
  • SCCR：100kA – tested without external CB or fuse

• UL recognized Type 1ca SPD (ANSI/UL1449 5th), Type 2ca SPD (CSA-C22.2 ) for PV/ Photovoltaic system (UL File No. E319871).
• Pluggable design with window fault indication
• Remote alarm signal optional
• Meet worldwide standards: UL 1449 5th, IEC 61643-31: 2018 & EN 50539-11: 2013
• Global patented thermal disconnector design with arc extinguishing device, fail-safe & self-protected, quick thermal response and perfect circuit cut-off function. No additional over-current protection devices required.

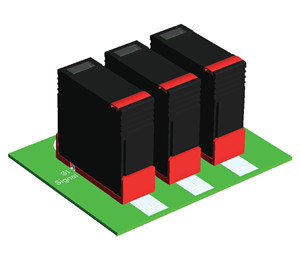

PCB Mounting SPD – Pluggable while install with soldering socket

The PCB mountingSPD is easy integrated on printed circuit boards (PCB) and close to sensitive electronic element inside device, to minimize the potential impact of lightning events. The PCB mounting SPD will help to significantly reduce the cost of substantial repair, replacement, system downtime and the loss of revenue.

Prosurge’s PCB mounting SPD is size optimization and space efficiency, which is a high performance but low cost solution for the industry of power electronics. It employs high energy Metal Oxide Varistor (MOV), and constructed with patented thermal protection and arc extinguishing technology which ensure safe disconnection while faulty current or abnormal voltage happened. Prosurge PCB mounting SPDs have comprehensively improved the safety performance and proven to be excellent fail-safe and self-protected protective devices because of patented technology.

• Rating:
  • For AC application:  Max. Continuous operating voltage (MCOV): 75~750Vac
  • For DC/PV application: Max. Permitted DC Voltage (Vpvdc): 48-825Vdc
  • Surge capacity (8/20 μs)：50kA ~ 80kA
  • Impulse current (10/350 μs): 7.5kA ~ 12.5kA
  • SCCR：up to 200kA – tested without external CB or fuse

• UL recognized Type 1ca SPD (ANSI/UL1449 5th), Type 2ca SPD (CSA-C22.2 )
• TUV certified as per IEC 61643-31 standard
• Quick thermal response and perfect circuit cut-off function due to special thermal disconnector design with arc extinguishing device
• Wide operating temperature range and high reliability
• High surge current capacity and low leakage current
• Floating remote signaling contact for fault indication while additional uses of PVD_Base

UL 497b ISOLATED LOOP CIRCUIT PROTECTORS for Data Communications and Fire-Alarm Circuits

Prosurge’s DM../M4N.. series are dataline protectors provide surge protection for 1-pair line with shielded or 2-pairs lines of closed circuit (loops) in the data, signal or communication system, suitable for use in category location B, C (ANSI/IEEE C62.41) or directly at the upstream near the protected devices.

• UL listed dataline protector per UL 497B standard
• Pluggable surge protection for DIN Rail mounting
• Signal transmission is not interrupted when exchanging module
• Two-stage protection circuit, limit the transients with gas discharge tubes and transzorb diodes
• Rate load current 1A
• Earth possible on DIN Rail
• Suitable to use for 4-20 mA current loops, analog communication, high-frequency bus system or video transmission system.
• Comply with UL497, and IEC61643-21:2012,category D1/C1/C2/C3
