panel surge protective device (panel SPD) - PS series

PS Series Surge Panel (900kA max.)

PS Series – Panel Surge Protection Device (Panel SPD)

Prosurge PS series panel surge protection devices are ultra-large surge capacity design for mission-critical application with very high exposure to lightning. They are UL 1449 4th Type 1 / Type 2 tested for point-of-entry (Category C, D, E, IEEE C62.41) and sub-circuit (Category B) protection. With surge capacity up to 900kA, PS series surge panel can meet most critical surge protection challenges worldwide and ensure maintenance-free for its lifetime.

By employing Prosurge’s patented SMTMOV/HSMTMOV, a thermally protected and arc extinguishing technology component, PS series has a significant advantage in abnormal over-voltage & high fault current safety and thus ensure industry’s highest level of safety and performance. The parallel redundancy modules design makes PS series more robust and reliable.

Anticipatory Failure Monitoring Technology

The Anticipatory Failure Monitoring (AFM) technology allows users to replace SPD before the protected electrical equipment or systems are threatened by overloads and thus ensure uninterrupted surge protection. Three stages LED indication (Blue-Yellow-Red) can help users to understand the current protection status. When the blue LED indicator turns to yellow, it shows that the SPD is in potential failure status and a replacement of the SPD is recommended. If the SPD is not replaced, it still continue to provide limited protection yet further overloads may lead to the risk of surge damage.

Features

  • UL listed Type 1 (ANSI/UL 1449 4th, CSA C22.2) SPDs
  • UL listed Type 2 (ANSI/UL 1449 4th, CSA C22.2) SPDs with sine wave tracking
  • Rating:

  MCOV: 150-690Vac

  Surge capacity: 400-900kA per phase

  SCCR: 200kA, tested without external CB or fuse

  • Prosurge patented SCCR 200kArms thermally protected MOV technology (SMTMOV/HSMTMOV) as key component
  • Full modes protection & high surge energy capability with compact size
  • Low voltage protection rating
  • Degradation failure indication
  • Degradation failure indication. Anticipatory Failure Monitoring (AFM) technology to ensure permanent surge protection
  • Surge event counter optional
  • Sine wave tracking function optional
  • Floating changeover contact for remote alarm
  • Threaded NPT
  • NEMA 4 metal enclosure to resist dirt, dust and water
  • Meet both standards of UL1449-4th and IEC61643-11:2011

Typical Applications

In high lightning exposure location likes:

  • All power circuit
  • Telecommunication applications like cell towers, base station, data center, transfer center ect)
  • Industrial
  • Commercial
  • Renewable energy
  • Oil or mineral

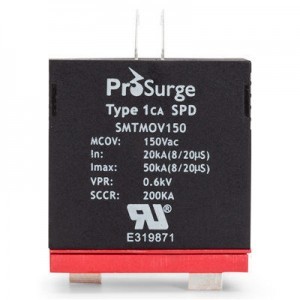

Adopt SMTMOV/HSMTMOV as Key Component

General Spec of PS Series Panel Type SPD

PS category D
Certification ANSI/UL1449 4th, CSA C22.2, Type 1, Type 2
Connection Type Parallel Connected
Surge Capacity 150-900kA per Phase
SCCR 200kArms
Sine wave tracking Optional for UL Type 2 listed
Lightning counter Current ≥ 200A (with Reset button )
Failure pre-test Press 2S (test button)
Power Status Indication Normal=Blue LED ON
Working Status Indication Three stage (Normal= Blue LED ON; Need replace= Yellow; Fail= turn to Red)
Power Connecting 8 AWG (L1=black ; L2=red; L3=blue; N=white; PE=green)
Signal cable 16AWG (C=red; NC=blue; NO=brown)
Working environments Temperature –40℃~+85℃; Humidity relative 5~95% (25℃); Altitude≤3km
Dimensions, W x D x H 350 x 370 x 223 mm
Threaded NPT 1” NPT
Enclosure Metal enclosure, NEMA 4
Net Weight (typical value) 10.6 kg

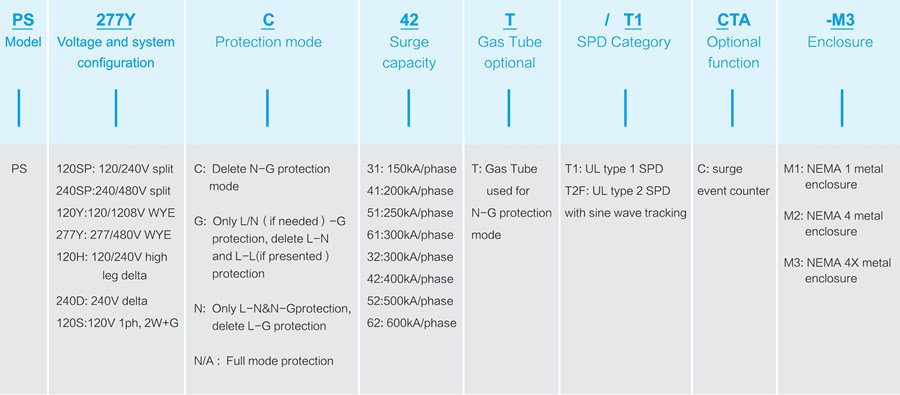

Model Configuration

Voltage Code for Power Distribution System
