Prosurge PSP Series – Panel Surge Protection Device (Panel SPD)
Prosurge PSP series panel type surge protective device are defined as one-stop high performance surge protection solution for most commercial and industrial environment with critical operations, including type 1 and type 2 surge protection devices that protect against the harmful effects of transient surges. These surges are the result of:
- Direct and indirect lightning strikes
- Power company load switching
- Upstream load switch at other facilities
Features
- ANSI / UL 1449 5th, CSA C22.2 listed type 1 SPD
- UL1449 5th, CSA C22.2 listed type 2 SPD with sine wave tracking
- Patented PTMOV as core component
- Full models protection
- high surge capacity in compact size: 50-300kA per phase
- Low voltage protection rating
- NEMA 4/4X enclosure
- Degradation failure indication
- Surge event counter optional
- Floating changeover contact for remote alarm
- Threaded NPT
Typical Applications
- Commercial
- Industrial
- Communications
- Renewable energy
- Critical power (hospitals, data centers etc)
From TPMOV to Enclosure-less Panel SPD – Great Option for SPD Manufacturer
Besides offering TPMOV as a component to manufacturers, Prosurge launched a semi-completed surge protection device called Enclosure-less SPD. We have completed the circuit design and assembly of the electronic components of a panel type SPD and have this assembly UL listed. In this case, we handle the complicated and time-consuming jobs in manufacturing a panel type surge protection device so that customers can maufactuer their UL listed panel type SPD at minimum cost and time.
Model Configuration
Voltage Code for Power Distribution System
- 120SP,240SP= 120/240V;240/480V————————————————————————————Split-phase three-wire + ground (Figure1)
- 120Y, 127Y, 240Y, 277Y, 347Y = 208Y/120V,220Y/127V, 415Y/240V, 480Y/277V, 600Y/347V—Three-phase wye (star) four-wire + ground (Figure2)
- 120H,240H = 120/240V, 240V/480V———————————————————————————Three-phase high leg delta (Figure3)
- 240D, 480D, 600D = 240V,480V,600V—————————————————————Three-phase delta three-wire +ground (Figure4)
- 120S,127S,240S,277S,347S =120V,127V, 240V,277V, 347V————————————————–Single-phase two-wire+ ground (Figure5)
PSP E Series
PROSURGE® PSP E series are extra compact UL Type 1 Surge Protective Devices (SPDs) designed to protect single phase electrical distribution systems against the harmful effects of transient surges. These surges are the result of:
- Direct and indirect lightning strikes
- Power company load switching
- Upstream load switching at other facilities
The PSP E is constructed with Prosurge’s patented PTMOV, which has a thermally protected and arc extinguishing technology as the core of Prosurge’s competency. PSP E has a significant advantage in abnormal over-voltage & high fault current safety and thus ensure industry’s highest level of safety and performance.
PSP E is tested and listed as Type 1 SPD in ANSI / UL 1449 5th, CSA C22.2. It is constructed in a waterproof plastic enclosure, with a LED light to demonstrate the protection status of the SPD.
Typical Applications
- Outdoor/Indoor and commercial LED lighting
- Telecommunication equipment
- Medical electronics
- Security & Alarm equipment
- Manufacturing Facilities
- Other Critical Electronic Equipment
Features
- UL 1449 5th Type 1 SPDs with SCCR up to 200kArms without external fuse or CB
- Prosurge Patented SCCR 200kArms thermally protected MOV technology(PTMOV) as key component
- Full modes protection
- High surge energy capability with compact size
- Low voltage protection rating
- Waterproof enclosure to resist dirt, dust and water
- Degradation failure indication.
General Specification
| PSP Category | E |
| Certification | ANSI / UL1449 5th, CSA C22.2, Type 1 |
| Connection Type | Parallel Connected |
| Surge Capacity | 25-50kA per Phase |
| Nominal discharge current In | 10kA |
| SCCR | 200kArms |
| Power Status Indication | Normal= LED ON |
| Working Status Indication | Fail= LED OFF |
| Power Connecting | 12AWG, 762mm (30”) length (L=black; N=white; PE=green ) |
| Working environments | Temperature –40℃～+80℃, Humidity relative 5~95% (25℃), Altitude≤3km |
| Dimensions (W x D x H) | 90 x 58 x 41 mm |
| Enclosure | Plastic enclosure, Waterproof |
| Threaded NPT | 1/2″NPT |
| Net Weight (typical value) | 0.18 kg |
PSP F Serie Surge Protection Device
PROSURGE® PSPF series panel SPDs are compact Surge Protective Devices (SPDs) with nominal discharge current 20,000A (8/20μs), designed to protect single and multi-phase electrical distribution systems against the harmful effects of transient surges. These surges are the result of:
- Direct and indirect lightning strikes
- Power company load switching
- Upstream load switching at other facilities
PSPF is tested and listed as UL1449 5th & CSA Type 1 SPD. It is constructed in a waterproof plastic enclosure to ensure that dirt, dust and water are resisted for either indoor or outdoor usage, and with indicator LED to demonstrate the power & protection status
Typical Applications
In medium exposure locations
- Home
- Commercial
- Industrial
- Communications
- Renewable energy
- Critical power (hospitals, data centers, etc)
Features
- UL 1449 5th Type 1 SPDs with SCCR up to 200kArms without external fuse or CB
- Prosurge Patented SCCR 200kArms thermally protected MOV technology(PTMOV) as key component
- Full modes protection
- High surge energy capability with compact size
- Low voltage protection rating
- Waterproof plastic enclosure to resist dirt, dust and water
- Degradation failure indication.
- Threaded NPT
Configuration and Ordering Information
| PSP F Model series | 127Y Voltage and system configuration | CG Protection mode | 11 Surge capacity | / T1 SPD Category |
|
| PSP | 120SP: 120/240V split 240SP:240/480V split 120Y:120/1208V WYE 127Y: 127/220V WYE 120H: 120/240V high leg delta 240D: 240V delta 120S:120V 1ph, 2W+G … | N: L-N,N-G protection mode G: L-G,N-G protection mode NN: only L-N protection mode CG:only L-G protection mode
| 11: 50kA per phase
| T1: UL type 1 SPD
|
Voltage Code for Power Distribution System
- 120SP,240SP= 120/240V;240/480V——————————————————Split-phase three-wire + ground (Figure1)
- 120Y, 127Y, 240Y, 277Y, 347Y = 208Y/120V,220Y/127V, 415Y/240V, 480Y/277V, 600Y/347V——————————————————-Three-phase wye (star) four-wire + ground (Figure2)
- 120H,240H = 120/240V, 240V/480V————————————————————-Three-phase high leg delta(Figure3)
- 240D, 480D, 600D = 240V,480V,600V——————————————-Three-phase delta three-wire +ground (Figure4)
- 120S,127S,240S,277S,347S =120V,127V, 240V,277V, 347V———————–Single-phase two-wire+ ground (Figure5)
General Specification
| Category | PSP F |
| Certification | ANSI/UL1449 5th edition CSA C22.2, Type 1 SPD |
| Connection Type | Parallel Connected |
| SOperating Frequency Range | 47~63Hz |
| Surge Capacity | 50kA 8/20μS per Phase |
| Nominal discharge current/ In | 20kA 8/20μS |
| SCCR | 200kArms |
| Power Status Indication | Normal = LED ON |
| Working Status Indication | Normal= LED ON; Fail= LED OFF |
| Power Connecting | 10 AWG, 762mm (30”) length, (L1=black; L2=red; L3=blue; N=white; PE=green ) |
| Response time | 25ns |
| Working environments | Temperature –40℃～+80℃, Humidity relative 5~95% (25℃) , Altitude≤3km |
| Dimensions (W x D x H) | 68x68x85mm ( 2.7×2.7×3.4 in) |
| Threaded NPT | 3/4″NPT |
| Enclosure | Waterproof plastic enclosure |
| Net Weight (typical value) | 0.4kg |
PSP B Serie Surge Protection Device
PROSURGE® PSP B serie surge panels is a 50kA 8/20μS per phase compact Surge Protective Devices (SPDs) designed to protect single and multi-phase electrical distribution systems against the harmful effects of transient surges. These surges are the result of:
- Direct and indirect lightning strikes
- Power company load switching
- Upstream load switching at other facilities
PSP B surge panel is tested and listed as UL1449 5th Type 1 and Type 2 SPD (with sine wave tracking function). It is constructed in a waterproof plastic enclosure, with a LED light to demonstrate the protection status of the SPD.
Typical Applications
In low & medium exposure locations
- Commercial
- Industrial
- Communications
- Renewable energy
- Critical power (hospitals, data centers, etc)
Features
- UL 1449 5th Type 1 SPDs with SCCR up to 200kArms without external fuse or CB
- UL1449 5th Type 2 SPDs with Sine Wave Tracking, SCCR 200kArms
- Prosurge Patented SCCR 200kArms thermally protected MOV technology(PTMOV) as key component
- Full modes protection
- High surge energy capability with compact size
- Low voltage protection rating
- Waterproof plastic enclosure to resist dirt, dust and water
- Degradation failure indication.
- Sine wave tracking function optional (for UL Type 2 listed)
- Remote Alarm optional
- Threaded NPT
Configuration and Ordering Information
| PSP Model series | 277Y Voltage and system configuration | C Protection mode | 12 Surge capacity | / T1 SPD Category | A Additional Function |
| PSP | 120SP: 120/240V split 240SP:240/480V split 120Y:120/1208V WYE 277Y: 277/480V WYE 120H: 120/240V high leg delta 240D: 240V delta 120S:120V 1ph, 2W+G … | C: Delete N-G protection mode
| 12: 50kA per phase
| T1: UL type 1 SPD T2F: UL type 2 SPD with sine wave tracking
| A: Remote Alarm |
Voltage Code for Power Distribution System
- 120SP,240SP= 120/240V;240/480V——————————————————Split-phase three-wire + ground (Figure1)
- 120Y, 127Y, 240Y, 277Y, 347Y = 208Y/120V,220Y/127V, 415Y/240V, 480Y/277V, 600Y/347V——————————————————-Three-phase wye (star) four-wire + ground (Figure2)
- 120H,240H = 120/240V, 240V/480V————————————————————-Three-phase high leg delta(Figure3)
- 240D, 480D, 600D = 240V,480V,600V——————————————-Three-phase delta three-wire +ground (Figure4)
- 120S,127S,240S,277S,347S =120V,127V, 240V,277V, 347V———————–Single-phase two-wire+ ground (Figure5)
General Specification
| Category | PSP B |
| Certification | ANSI/UL1449 5th edition CSA C22.2, Type1, Type 2 SPD |
| Connection Type | Parallel Connected |
| Surge Capacity | 50kA 8/20μS per Phase |
| Nominal discharge current/ In | 10kA 8/20μS |
| SCCR | 200kArms |
| Sine wave tracking | Optional for UL Type 2 listed |
| Power Status Indication | Normal = Power LED ON |
| Working Status Indication | Fail = Surge protection LED ON |
| Power Connecting | 12 AWG, 762mm (30”) length |
| Signal cable | 16 AWG, 762mm (30”) length (C=red; NC=blue; NO=brown) |
| Working environments | Temperature –40℃～+75℃, Humidity relative 5~95% (25℃) , Altitude≤3km |
| Dimensions (W x D x H) | 162 x 80 x 76 mm |
| Threaded NPT | 1/2″NPT |
| Enclosure | Waterproof plastic enclosure |
| Net Weight (typical value) | 0.47 kg |
20PSP Series Surge Protection Device
PROSURGE® 20PSP series surge panel is a 100kA 8/20μS per phase compact Surge Protective Devices (SPDs) designed to protect single and multi-phase electrical distribution systems against the harmful effects of transient surges. These surges are the result of:
- Direct and indirect lightning strikes
- Power company load switching
- Upstream load switching at other facilities
The20PSP TVSS is constructed with Prosurge’s patented PTMOV, which has a thermally protected and arc extinguishing technology as the core of Prosurge’s competency. Prosurge 20PSP surge SPD has a significant advantage in abnormal over-voltage & high fault current safety and thus ensure industry’s highest level of safety and performance.
20PSP B is constructed in a waterproof plastic enclosure, with a LED light to demonstrate the protection status of the SPD.
Typical Applications
In low & medium exposure locations
- Commercial
- Industrial
- Communications
- Renewable energy
- Critical power (hospitals, data centers, etc)
Features
- UL 1449 5th & CSA C22.2 listed Type 1 SPD with SCCR up to 200kArms without external fuse or CB
- UL1449 5th and CSA listed Type 2 SPDs with Sine Wave Tracking function
- Prosurge Patented SCCR 200kArms thermally protected MOV technology( 20PTMOV) as key component
- Nominal discharge current 20kA 8/20μs
- Full modes protection
- High surge energy capability up to 100kA per phase with compact size
- Low voltage protection rating
- Degradation failure indication.
- Remote Alarm optional
- Threaded NPT
- Waterproof plastic enclosure to resist dirt, dust and water
Configuration and Ordering Information
| 20PSP Model series | 277Y Voltage and system configuration | C Protection mode | 12 Surge capacity | / T1 SPD Category | A Additional Function |
| 20PSP | 120SP: 120/240V split 240SP:240/480V split 120Y:120/1208V WYE 277Y: 277/480V WYE 120H: 120/240V high leg delta 240D: 240V delta 120S:120V 1ph, 2W+G … | C: Delete N-G protection mode | 12: 100kA per phase | T1: UL type 1 SPD T2F:UL type 2 SPD with sine wave tracking | A: Remote Alarm |
Voltage Code for Power Distribution System
- 120SP,240SP= 120/240V;240/480V——————————————————Split-phase three-wire + ground (Figure1)
- 120Y, 127Y, 240Y, 277Y, 347Y = 208Y/120V,220Y/127V, 415Y/240V, 480Y/277V, 600Y/347V——————————————————-Three-phase wye (star) four-wire + ground (Figure2)
- 120H,240H = 120/240V, 240V/480V————————————————————-Three-phase high leg delta(Figure3)
- 240D, 480D, 600D = 240V,480V,600V——————————————-Three-phase delta three-wire +ground (Figure4)
- 120S,127S,240S,277S,347S =120V,127V, 240V,277V, 347V———————–Single-phase two-wire+ ground (Figure5)
General Specification
| Category | 20PSP |
| Certification | ANSI/UL1449 5th edition, CSA C22.2, Type1 SPD, Type2 SPD (with sine wave tracking) |
| Connection Type | Parallel Connected |
| Surge Capacity | 100kA 8/20μS per Phase |
| Nominal discharge current/ In | 20kA 8/20μS |
| SCCR | 200kArms |
| Sine wave tracking | Optional for UL Type 2 listed |
| Power Status Indication | Normal=Green LED ON |
| Working Status Indication | Normal= Green LED ON; Fail= Red LED ON |
| Power Connecting | 12 AWG, 762mm (30”) length (L1=black; L2=red; L3=blue; N=white; PE=green ) |
| Signal cable | 16 AWG, 762mm (30”) length (C=red; NC=blue; NO=brown) |
| Working environments | Temperature –40℃～+75℃, Humidity relative 5~95% (25℃) , Altitude≤3km |
| Dimensions (W x D x H) | 162 x 80 x 76 mm |
| Threaded NPT | 1/2″NPT |
| Enclosure | Waterproof plastic enclosure |
| Net Weight (typical value) | 0.53 kg |
PSP C Series Surge Protection Device
PROSURGE® PSP C series surge panel/TVSS are defined as high performance surge protection solution for most commercial and industrial environments with critical operations. They include Type 1 and Type 2 Surge Protective Devices (SPDs) that protect against the harmful effects of transient surges. These surges are the result of:
- Direct and indirect lightning strikes
- Power company load switching
- Upstream load switching at other facilities
PSP C is constructed with Prosurge’s patented PTMOVs, which has a thermally protected and arc extinguishing technology as the core of Prosurge’s competency. PSP C has a significant advantage in abnormal over-voltage & high fault current safety and thus ensure industry’s highest level of safety and performance. The parallel redundancy modules design makes the SPDs extremely robust and reliable, and thus may handle great impulse current up to 300kA (8/20 μs) and multiple impulse current at its highest rated level.
The Prosurge PSP C series are tested and listed as UL1449 5th Type 1 and Type 2 SPD (with sine wave tracking function). Their front panels integrate functionality of SPD working status monitor and self-diagnosis to enhance the performance and usability. They feature with indicator and colored LEDs to demonstrate the power & protection status of each protected power phase. They are constructed with waterproof enclosures to ensure that dirt, dust and water are resisted for either indoor or outdoor usage.
Typical Applications
In high & medium exposure locations
- Commercial
- Industrial
- Communications
- Renewable energy
- Critical power (hospitals, data centers, etc)
Features
- UL 1449 5th Type 1 SPDs with SCCR up to 200kArms without external fuse or CB
- UL1449 5th Type 2 SPDs with Sine Wave Tracking, SCCR 200kArms
- Prosurge Patented SCCR 200kArms thermally protected MOV technology(PTMOV) as core component
- Full modes protection
- Highsurge energy capability with compact size
- Low voltage protection rating
- Two type enclosure, waterproof plastic and metal enclosure to resist dirt, dust and water
- Audible alarm, beep while SPD fail
- Degradation failure indication.
- Surge event counter optional
- Sine wave tracking function optional(for UL Type 2 listed)
- Remote Alarm optional
- Threaded NPT
Configuration and Ordering Information
| PSP Model series | 277Y Voltage and system configuration | C Protection mode | 42 Surge capacity | M Enclosure | / T1 SPD Category | CTA Additional function |
| PSP | 120SP: 120/240V split 240SP:240/480V split 120Y:120/1208V WYE 277Y: 277/480V WYE 120H: 120/240V high leg delta 240D: 240V delta 120S:120V 1ph, 2W+G … | C: Delete N-G protection mode
| 11: 25kA per phase 12:50kA per phase 22:100kA per phase 32:150kA per phase 42:200kA per phase 52:250kA per phase 62:300kA per phase | M: metal enclosure (Only C2 type) *Part No. without M means plastic enclosure (E, B, C1 type) | T1: UL type 1 SPD T2F: UL type 2 SPD with sine wave tracking
| C: surge event counter |
Voltage Code for Power Distribution System
- 120SP,240SP= 120/240V;240/480V——————————————————Split-phase three-wire + ground (Figure1)
- 120Y, 127Y, 240Y, 277Y, 347Y = 208Y/120V,220Y/127V, 415Y/240V, 480Y/277V, 600Y/347V———————————————————————————————————————————————————Three-phase wye (star) four-wire + ground (Figure2)
- 120H,240H = 120/240V, 240V/480V————————————————————-Three-phase high leg delta(Figure3)
- 240D, 480D, 600D = 240V,480V,600V——————————————-Three-phase delta three-wire +ground (Figure4)
- 120S,127S,240S,277S,347S =120V,127V, 240V,277V, 347V———————–Single-phase two-wire+ ground (Figure5)
Enclosure
PSP C1 (Waterproof Plastic Enclosure)
PSP C2 (Waterproof Metal Enclosure)
General Specification
| PSP category | C1 | C2 |
| Certification | ANSI/UL1449 5th edition, Type1/ 2 | |
| Connection Type | Parallel Connected | |
| Surge Capacity | 100-300kA per Phase | |
| SCCR | 200kArms | |
| UL1283 EMI/RFI filter | Sine wave tracking, up to -45dB from 10kHz to 100MHz (Type 2 only) | |
| Lightning counter Current | ≥ 200A (with Reset button ) | |
| Failure pre-test | Press 2S (test button) | |
| Power Status Indication | Normal=Green LED ON | |
| Working Status Indication | Normal= Green LED ON; Fail= Red LED ON Buzzer inside, beep while SPD fail | |
| Power Connecting | 10AWG, 762mm (30”) length, (L1=black; L2=red; L3=blue; N=white; PE=green ) | |
| Signal cable | 16AWG, 762mm (30”) length,(C=red; NC=blue; NO=brown) | |
| Working environments | Temperature –40℃～+75℃, Humidity relative 5~95% (25℃), Altitude≤3km | |
| Dimensions (W x D x H) | 232 x 150 x 106 mm | 286 x 200 x 120 mm |
| Threaded NPT | 3/4″NPT | |
| Enclosure | Plastic enclosure,waterproof | Metal enclosure, waterproof |
| Net Weight (typical value) | 1.59 kg | 4.3 kg |
HPSP Series Surge Protection Device
PROSURGE® HPSP series panel SPD/ TVSS is defined as high performance surge protection solution for most commercial and industrial environments with critical operations. They include Type 1 and Type 2 Surge Protective Devices (SPDs) that protect against the harmful effects of transient surges. These surges are the result of:
- Direct and indirect lightning strikes
- Power company load switching
- Upstream load switching at other facilities

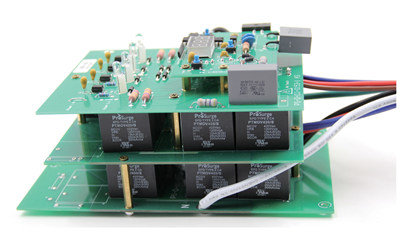

HPSP box type surge protective device is constructed with Prosurge’s patented PTMOVs, which has a thermally protected and arc extinguishing technology as the core of Prosurge’s competency. This HPSP SPD has a significant advantage in abnormal over-voltage & high fault current safety and thus ensure industry’s highest level of safety and performance. The parallel redundancy modules design makes the SPDs extremely robust and reliable, and thus may handle great impulse current up to 600kA (8/20 μs) and multiple impulse current at its highest rated level.

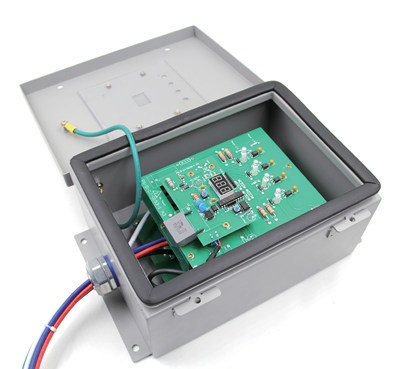

The Prosurge HPSP series transient observer/ surge diverter is tested and listed as UL1449 5th Type 1 and Type 2 SPD (UL1283 listed sine wave tracking function). Their front panels integrate functionality of SPD working status monitor and self-diagnosis to enhance the performance and usability. They feature with indicator and colored LEDs to demonstrate the power & protection status of each protected power phase. They are constructed with waterproof enclosures to ensure that dirt, dust and water are resisted for either indoor or outdoor usage.
Typical Applications
In high & medium exposure locations
- Commercial
- Industrial
- Communications
- Renewable energy
- Critical power (hospitals, data centers, etc)
Features
- UL 1449 5th, CSA C22.2 listed Type 1 SPDs
- UL1283, UL1449 5th and CSA C22.2 listed Type 2 SPDs with Sine Wave Tracking (EMI/RFI filter)
- Prosurge Patented SCCR 200kArms thermally protected MOV technology(PTMOV) as core component
- Rating:
Surge capacity (8/20 us ): 400~600 kA per phase
Lightning current capacity (10/350 us): 40~60kA per phase, EN/IEC 61643-1/11 class I test
Nominal discharge current 20kA 8/20 us
Short Circuit current rating (SCCR): 200 kArms – tested without external CB or fuse
- Sine Wave Tracking (EMI/RFI filter) filtering up to -45dB from 10kHz to 100MHz
- Full modes protection
- Large surge energy capability with compact size
- Low voltage protection rating
- Degradation failure indication, audible alarm, beep while SPD fail
- Surge event counter optional
- Waterproof enclosure to resist dirt, dust and water
- Remote Alarm optional
- Threaded NPT
Configuration and Ordering Information
| HPSP Model series | 240Y Voltage and system configuration | C Protection mode | 42 Surge capacity | / T1 SPD Category | CTA Additional Function |
| HPSP | 120SP: 120/240V split 240SP:240/480V split 120Y:120/1208V WYE 277Y: 277/480V WYE 120H: 120/240V high leg delta 240D: 240V delta 120S:120V 1ph, 2W+G … | C: Delete N-G protection mode | 42: 400kA per phase 52: 500kA per phase 62: 600kA per phase | T1: UL type 1 SPD T2F: UL type 2 SPD with sine wave tracking UL 1283 listed | C: surge event counter |
Voltage Code for Power Distribution System
Voltage Code for Power Distribution System
- 120SP,240SP= 120/240V;240/480V——————————————————Split-phase three-wire + ground (Figure1)
- 120Y, 127Y, 240Y, 277Y, 347Y = 208Y/120V,220Y/127V, 415Y/240V, 480Y/277V, 600Y/347V———————————————————————————————————————————————————Three-phase wye (star) four-wire + ground (Figure2)
- 120H,240H = 120/240V, 240V/480V————————————————————-Three-phase high leg delta(Figure3)
- 240D, 480D, 600D = 240V,480V,600V——————————————-Three-phase delta three-wire +ground (Figure4)
- 120S,127S,240S,277S,347S =120V,127V, 240V,277V, 347V———————–Single-phase two-wire+ ground (Figure5)
General Specification
| PSP category | HPSP | |
| Certification | ANSI/UL1449 5th edition, CSA C22.2, Type1 SPD ANSI/UL1449 5th edition, CSA C22.2,UL1283, Type2 SPD | |
| Connection Type | Parallel Connected | |
| Capacity | Surge current | 400-600kA (8/20μs) per Phase |
| Lightning current | 40~60kA (10/350μs) per Phase | |
| Nominal discharge current /In | 20kA 8/20μs | |
| SCCR | 200kArms | |
| UL1283 EMI/RFI filter | Sine wave tracking, up to -45dB from 10kHz to 100MHz (Type2 only) | |
| Lightning counter Current | ≥ 200A (with Reset button) | |
| Failure pre-test | Press 2S (test button) | |
| Power Status Indication | Normal=Blue LED ON | |
| Working Status Indication | Normal= Green LED ON; Fail= Red LED ON Buzzer inside, beep while SPD fail | |
| Power Connecting | 10AWG, 762mm (30”) length, (L1=black; L2=red; L3=blue; N=white; PE=green) | |
| Signal cable | 16AWG, 762mm (30”) length (C=red; NC=blue; NO=brown) | |
| Working environments | Temperature –40℃～+75℃, Humidity relative 5~95% (25℃) , Altitude≤3km | |
| Dimensions (W x D x H) | 232 x 150 x 106 mm | |
| Threaded NPT | 3/4″NPT | |
| Enclosure | Plastic enclosure,waterproof | |
| Net Weight (typical value) | 1.8 kg | |
Prosurge Surge Protection Device Products Family
Click to explore our extensive surge protection devices and other lightning protection products.
Live chat with us by clicking the chat button on the bottom right corner
Fill the Contact Form and Get Reply in 2 Hours
For North American market, please contact
+86 757 8632 7660
For other markets, please contact
+86 757 8632 7660
