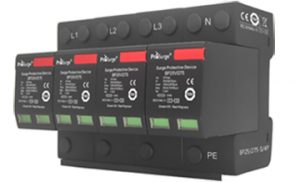

Class I+ Class II / Type 1+ Type 2 Surge Protection Device (SPD)

Prosurge’s Type 1 + Type 2 Surge Protection Devices (SPDs) are designed to discharge high current surges without any destruction of the installation.

This surge protective device is characterized by its capacity to withstand impulse current with 10/350µs waveform which simulates direct impact coming from a natural lightning current.

Prosurge Type 1 + Type 2 (class I + Class II)  SPDs are placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

Prosurge also provides Class I + Class II, Type 1 + Type 2 SPD with different technology of spark gap technology, VT technology and MOV technology.

Class-1-2-Type-1-2-SPD_triggered-spark-gap-technology-Prosurge-258×212

MOV Technology -12.5kA 10/350 – TUV Certified

Class-1-2-Type-1-2-SPD_triggered-spark-gap-technology-Prosurge-258×212

MOV Technology – 25kA 10/350 – TUV Certified

Class-1-2-Type-1-2-SPD_triggered-spark-gap-technology-Prosurge-258×212

Class II / Type 2 (also tested to class I + Class II, T1 +T2) Surge Protection Device (SPD)

Prosurge Type 2 Surge Protection Devices (SPDs) are also tested to Type 1 + Type 2 with impulse current 10/350µs.

It is designed to discharge high current surges without any destruction of the installation. This surge protective device is characterized by its capacity to withstand impulse current with 10/350µs waveform which simulates direct impact coming from a natural lightning current. Prosurge Type 2 SPD (also T1 + T2) SPDs are placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

Rating:

  • Uc range: 75Vac to 750Vac
  • Imax: 50kA 8/20
  • Iimp: 7.5kA 10/350
  • Various SPD configuration: 1+1, 2+0, 3+0, 3+1 SPD

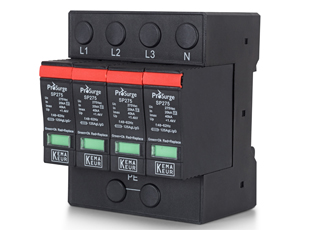

    Class II / Type 2 Surge Protection Device (SPD)

    Prosurge Class II/T2 surge protective device is designed for low-voltage power supply system protection against surges at the boundaries from lightning protection zone 1-2 and higher.

    • KEMA certified Class II/T2 SPD per IEC/EN 61643-11.
    • UL certified Type 1ca SPD per UL1449 5th edition (pass SCCR test 200kArms)
    • High surge current discharge capacity up to 40kA 8/20μs
    • High reliability due to global patented thermally protected MOV with reliable arc-extinguish (TPAE) technology.
    • Pluggable module for easy replacement
    • Degradation indication and remote signal contact.
    • Comply with IEC/EN 61643-11, UL1449 5th, CSA C22.2 etc standards

    Class III / Type 3 Surge Protection Device (SPD)

    Prosurge T3 Surge Protection Device (SPD) is designed for low-voltage power supply system protection against surges at the boundaries from lightning protection zone 2-3 and higher.

    They shall be installed as close as possible from the sensitive equipement to protect. Tested with a 1,2/50 – 8/20 current combination wave generator, they ensure a very low protection level voltage value.

    • Comply with IEC 61643-11 and UL1449 5th
    • Pluggable design, easy replaced without any tools.
    • High Discharge Capacity with 8/20 us waveform, Imax 10kA to 25kA 8/20
    • High reliability due to thermal disconnection device
    • Visual status indication and remote signal contact available
    • Mono block type for single phase and three phase configuration are available

    PCB Mounting SPD – Pluggable while install with soldering socket

    The PCB mounting surge protective device is easy untegrated in PCB and close to sensitive electronic element inside device, to minimize the potential impact of lightning events. The PCB mounting SPD will help to significantly reduce the cost of substantial repair, replacement, system downtime and the loss of revenue.

    Prosurge’s PCB mounting SPD is size optimization and space efficiency, which is a high performance but low cost solution for the industry of power electronics. It employs high energy Metal Oxide Varistor (MOV), and constructed with patented thermal protection and arc extinguishing technology which ensure safe disconnection while faulty current or abnormal voltage happened. Prosurge PCB mounting SPDs have comprehensively improved the safety performance and proven to be excellent fail-safe and self-protected protective devices because of patented technology.

    • Rating:
      • For AC application:  Max. Continuous operating voltage (MCOV): 75~750Vac
      • For DC/PV application: Max. Permitted DC Voltage (Vpvdc): 48-825Vdc
      • Surge capacity (8/20 μs):50kA ~ 80kA
      • Impulse current (10/350 μs): 7.5kA ~ 12.5kA
      • SCCR(UL1449 5th):up to 200kA – tested without external CB or fuse
      • Iscpv (IEC61643-31):1000A
    • UL recognized Type 1ca SPD (ANSI/UL1449 5th), Type 2ca SPD (CSA-C22.2 )
    • TUV certified as per IEC 61643-31 standard
    • Quick thermal response and perfect circuit cut-off function due to special thermal disconnector design with arc extinguishing device
    • Wide operating temperature range and high reliability
    • High surge current capacity and low leakage current
    • Floating remote signaling contact for fault indication while additional uses of PVD_Base
